General Purpose Extended Length K-Type Thermocouple Probe with Handle
HI766E2
Description
The HI766E2 is an extended length general purpose, penetration K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A cable extends 1 m (3.3’) from the handle to the thermocouple connector with the meter. The extended length and round, pointed tip of the probe allows users to obtain highly accurate temperature readings of a wide variety of liquid, air, and gas samples.
• 6 second response time
• Measures up to 900°C (1650°F)
• Stainless steel
The General Purpose Extended Length K-Type Thermocouple Probe with Handle – HI766E2 is designed to measure the temperature of myriad substances, ranging from liquid to semi-solid to air and gas. The response time of a measurement is affected by the position of the sensor relative to the substance being measured. The HI766E2 round, pointed tip construction offers a speedy 6-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).
SPECIFICATIONS
| Maximum Temperature : | 900°C (1650°F) |
|---|---|
| Response Time : | 6 seconds (90% of Final Value) |

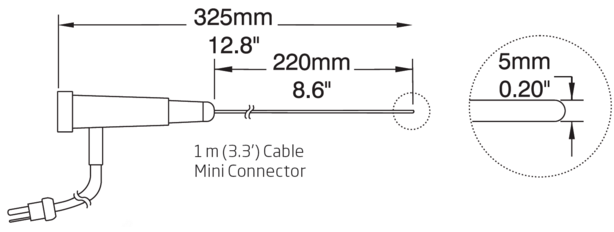

| Probe Length : | 220 mm (8.5″) |
| Body Material : | stainless steel |
| Diameter : | 5 mm (0.2″) |
| Cable : | 1 m (3.3′) |
| Applications : | air, gases, liquid |
| Warranty : | 6 months |
