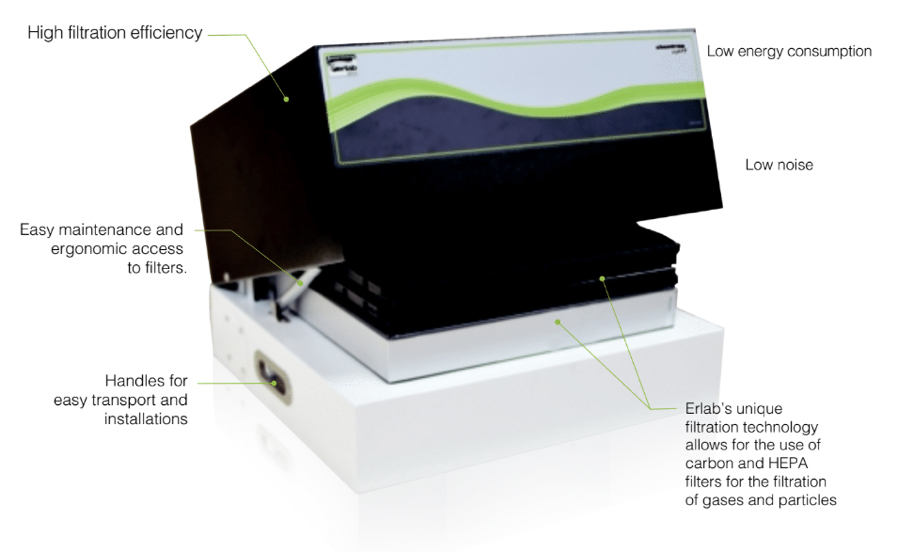

Chemtrap Midcap H402

Description

Standalone Filtration System for Fire Proof and Chemical Storage Cabinets

With the Chemtrap Midcap filtration system, you can avoid to duct out your chemicals storage cabinets, install them anywhere you want as it just needs an electrical socket to vent the cabinet 24 hours and filter 100% of the noxious chemicals from chemical containers placed inside. You will save an average of 1,700 000 m³ of expensive aircon air per cabinet and per year if the cabinet was ducted out.

With the Chemtrap Midcap, the installation is quick, unlike the complicated ducted systems: just lace it on the top of you cabinet, connect the stainless steel tube between he exhaust port of the cabinet and the inlet port of the Chemtrap, plug-in to an electrical socket and that’s done!

  Benefits :-
  •   Continuously cleans the air in your lab
  •   Easy to install, energy saving & economical, no ducting needed
  •   Eliminates noxious vapors released from your fire resistant safety cabinet and improves your safety from inhalation risks

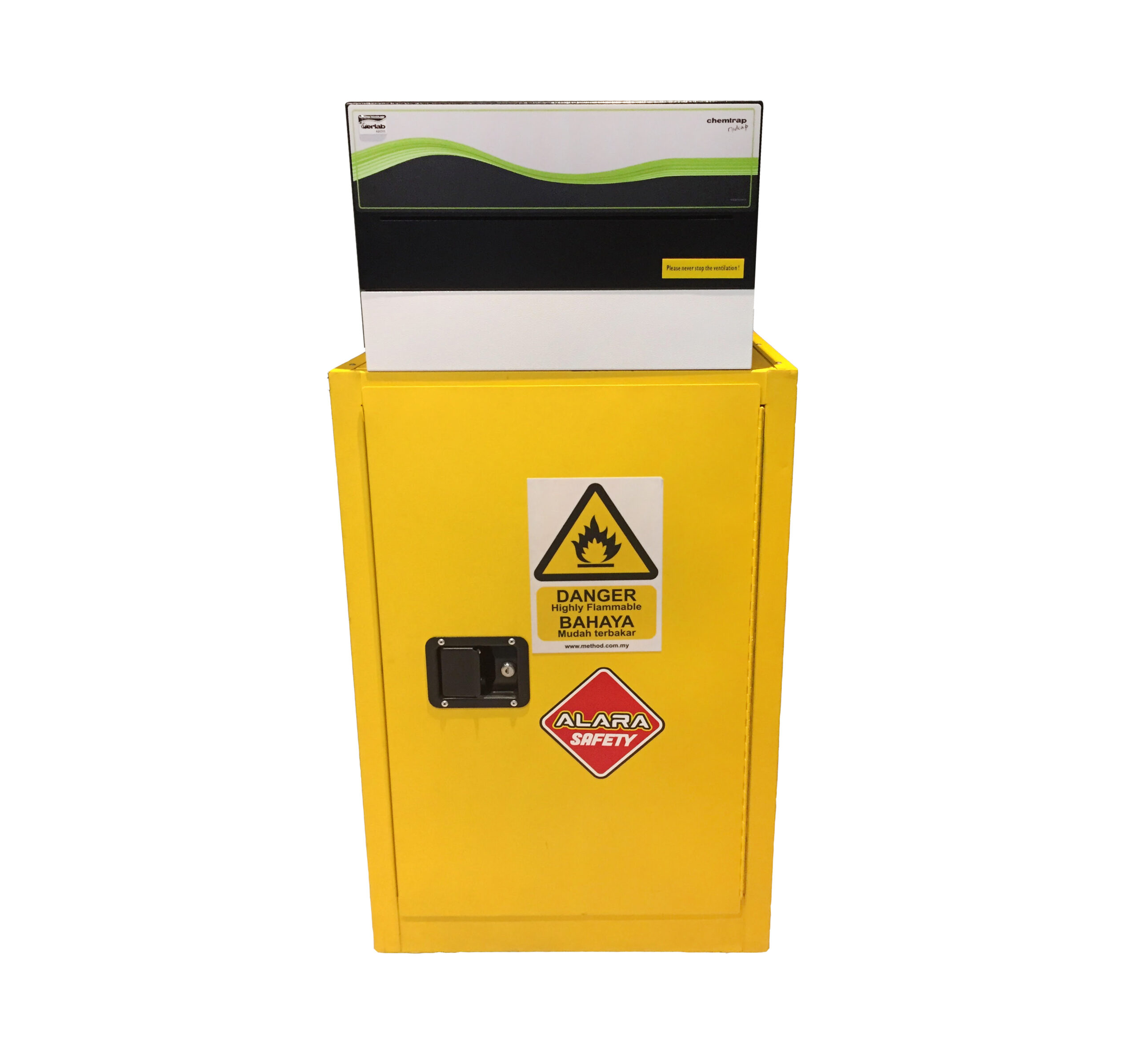

  •   Transform any fire proof or chemical storage cabinet into a standalone filtered storage safety cabinet

  Specifications :-
  •   External Width (mm/in) : 482 /19
  •   External Depth (mm/in) : 451 / 17 ^¾
  •   External Height (mm/in) : 315/ 12^1/2
  •   Air Flow (m³/h – CFM) : 75 m³/h
  •   Voltage / Frequency (v/Hz) : 2300v / 50Hz and 110v / 60Hz
  •   Power consumption (Watts) : 19 watt
  •   Connection Pipe : Adjustable stainless steel connection pipe Ø 61 mm (2 ^½ in)
  •   Safety standards :
      Filtration performances tested according to the AFNOR NF X 15-211:2009 standard : France EN 1822:1998 (HEPA H14 & ULPA U17 Filters) – CE Marking
