AT 8029

Description

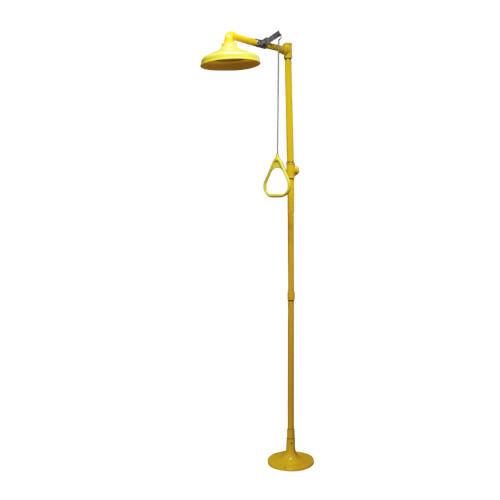

• Shower Bowl : 280mm (11″) bowl is injection moulded in chemical resistant ABS bright yellow colour
• Control Valve : 1 1/4″ fast-action stainless steel ball valve that opens with a downward pull on the triangle handle of the stainless steel rod. COntrol valve will remain open until manually close by pushing the ros upwards
• Pedestal : 250mm (10″) aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow
• Pipe & Fittings : 1 1/4″ stainless steel pipe epoxy powder coated to bright safety yellow colour
• Pipe Threads : Pipe threads in accordance to BS supplied as standards. NPT available upon request
• Signage : Drench Shower
• Waste : 1 1/4″ IPS
• Water Supply : 1 1/4″ IPS
• Compliance : ANSI Z358.1-2004

Note : Installation and piping not included
